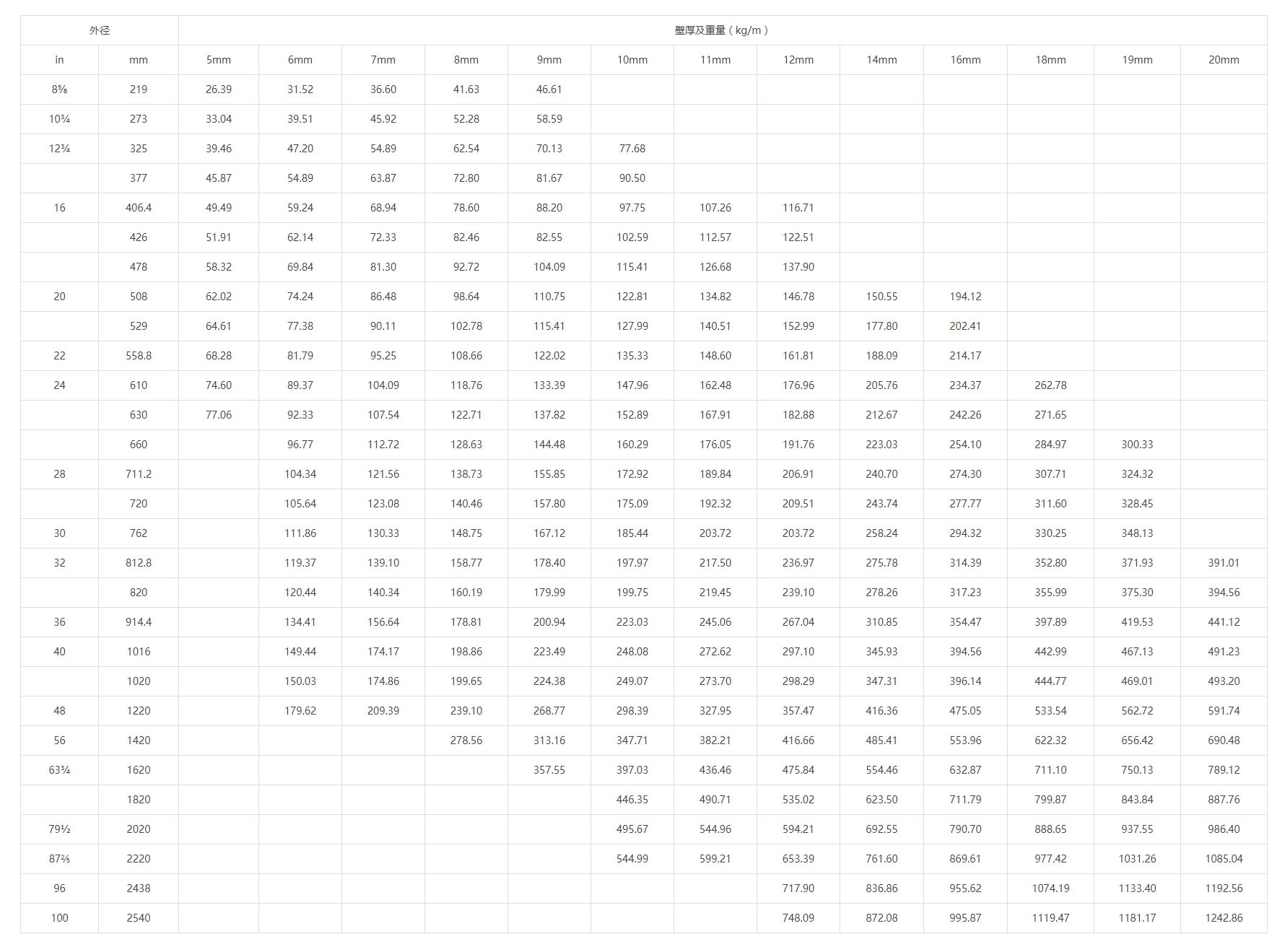

| 外徑 | 壁厚及重量（kg/m） | |||||||||||||
| in | mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 11mm | 12mm | 14mm | 16mm | 18mm | 19mm | 20mm |
| 8? | 219 | 26.39 | 31.52 | 36.60 | 41.63 | 46.61 | ||||||||
| 10? | 273 | 33.04 | 39.51 | 45.92 | 52.28 | 58.59 | ||||||||
| 12? | 325 | 39.46 | 47.20 | 54.89 | 62.54 | 70.13 | 77.68 | |||||||
| 377 | 45.87 | 54.89 | 63.87 | 72.80 | 81.67 | 90.50 | ||||||||
| 16 | 406.4 | 49.49 | 59.24 | 68.94 | 78.60 | 88.20 | 97.75 | 107.26 | 116.71 | |||||
| 426 | 51.91 | 62.14 | 72.33 | 82.46 | 82.55 | 102.59 | 112.57 | 122.51 | ||||||
| 478 | 58.32 | 69.84 | 81.30 | 92.72 | 104.09 | 115.41 | 126.68 | 137.90 | ||||||
| 20 | 508 | 62.02 | 74.24 | 86.48 | 98.64 | 110.75 | 122.81 | 134.82 | 146.78 | 150.55 | 194.12 | |||
| 529 | 64.61 | 77.38 | 90.11 | 102.78 | 115.41 | 127.99 | 140.51 | 152.99 | 177.80 | 202.41 | ||||
| 22 | 558.8 | 68.28 | 81.79 | 95.25 | 108.66 | 122.02 | 135.33 | 148.60 | 161.81 | 188.09 | 214.17 | |||
| 24 | 610 | 74.60 | 89.37 | 104.09 | 118.76 | 133.39 | 147.96 | 162.48 | 176.96 | 205.76 | 234.37 | 262.78 | ||
| 630 | 77.06 | 92.33 | 107.54 | 122.71 | 137.82 | 152.89 | 167.91 | 182.88 | 212.67 | 242.26 | 271.65 | |||
| 660 | 96.77 | 112.72 | 128.63 | 144.48 | 160.29 | 176.05 | 191.76 | 223.03 | 254.10 | 284.97 | 300.33 | |||
| 28 | 711.2 | 104.34 | 121.56 | 138.73 | 155.85 | 172.92 | 189.84 | 206.91 | 240.70 | 274.30 | 307.71 | 324.32 | ||
| 720 | 105.64 | 123.08 | 140.46 | 157.80 | 175.09 | 192.32 | 209.51 | 243.74 | 277.77 | 311.60 | 328.45 | |||
| 30 | 762 | 111.86 | 130.33 | 148.75 | 167.12 | 185.44 | 203.72 | 203.72 | 258.24 | 294.32 | 330.25 | 348.13 | ||
| 32 | 812.8 | 119.37 | 139.10 | 158.77 | 178.40 | 197.97 | 217.50 | 236.97 | 275.78 | 314.39 | 352.80 | 371.93 | 391.01 | |
| 820 | 120.44 | 140.34 | 160.19 | 179.99 | 199.75 | 219.45 | 239.10 | 278.26 | 317.23 | 355.99 | 375.30 | 394.56 | ||
| 36 | 914.4 | 134.41 | 156.64 | 178.81 | 200.94 | 223.03 | 245.06 | 267.04 | 310.85 | 354.47 | 397.89 | 419.53 | 441.12 | |
| 40 | 1016 | 149.44 | 174.17 | 198.86 | 223.49 | 248.08 | 272.62 | 297.10 | 345.93 | 394.56 | 442.99 | 467.13 | 491.23 | |
| 1020 | 150.03 | 174.86 | 199.65 | 224.38 | 249.07 | 273.70 | 298.29 | 347.31 | 396.14 | 444.77 | 469.01 | 493.20 | ||
| 48 | 1220 | 179.62 | 209.39 | 239.10 | 268.77 | 298.39 | 327.95 | 357.47 | 416.36 | 475.05 | 533.54 | 562.72 | 591.74 | |
| 56 | 1420 | 278.56 | 313.16 | 347.71 | 382.21 | 416.66 | 485.41 | 553.96 | 622.32 | 656.42 | 690.48 | |||
| 63? | 1620 | 357.55 | 397.03 | 436.46 | 475.84 | 554.46 | 632.87 | 711.10 | 750.13 | 789.12 | ||||
| 1820 | 446.35 | 490.71 | 535.02 | 623.50 | 711.79 | 799.87 | 843.84 | 887.76 | ||||||
| 79? | 2020 | 495.67 | 544.96 | 594.21 | 692.55 | 790.70 | 888.65 | 937.55 | 986.40 | |||||
| 87? | 2220 | 544.99 | 599.21 | 653.39 | 761.60 | 869.61 | 977.42 | 1031.26 | 1085.04 | |||||
| 96 | 2438 | 717.90 | 836.86 | 955.62 | 1074.19 | 1133.40 | 1192.56 | |||||||
| 100 | 2540 | 748.09 | 872.08 | 995.87 | 1119.47 | 1181.17 | 1242.86 | |||||||
